Categories: Cameras

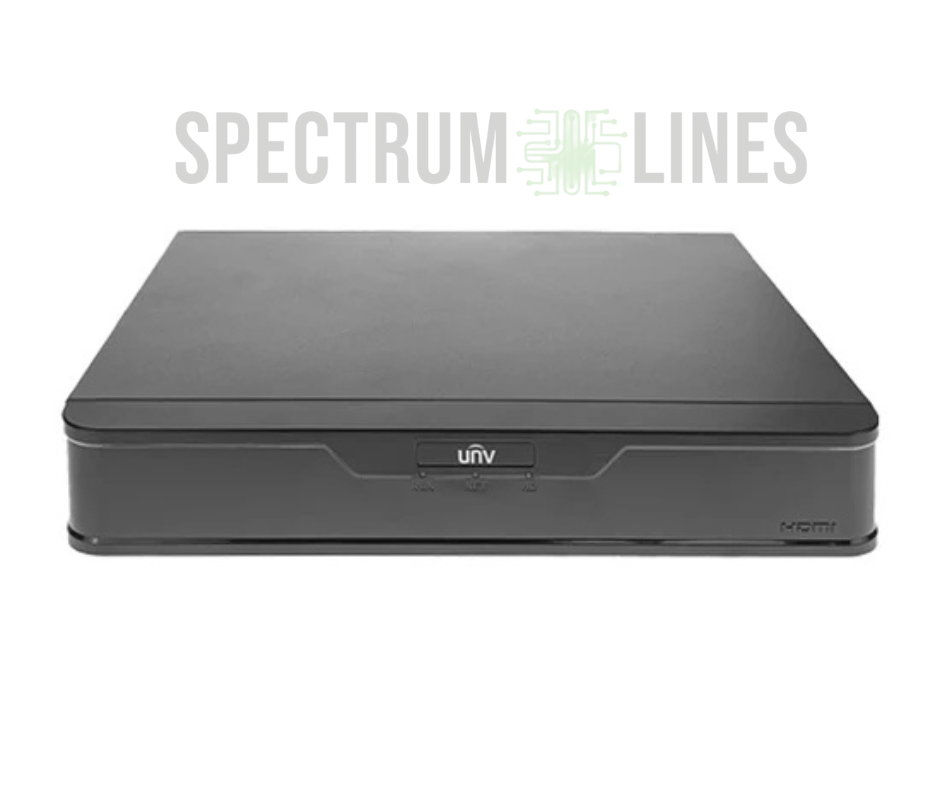

UNV 4K UltraHD Hybrid 8-Channel Digital Video Recorder with 4 Additional IP Inputs and 1 SATA Hard Drive Bay (XVR301-08Q3)
$339.00
- Hybrid Video Input:
- Supports analog HD formats (TVI, AHD, CVI, CVBS) via BNC and up to 4 additional IP channels, making it a hybrid surveillance solution.
- Total channel capacity: 12 (8 analog + 4 IP).
- 4K UltraHD Recording:
- Records and displays up to 8MP resolution for detailed footage.
- HDMI output supports crisp 4K video on compatible monitors.
- Storage & Backup:
- Single SATA bay supports up to 10TB HDD (not included).
- Supports manual and automated USB or network backups for data protection.
- Smart Playback & Alerts:
- Smart search by motion or event.
- Supports scheduled and triggered recording with email or buzzer notifications.
- Remote Access & Compatibility:
- Easily monitor cameras remotely via mobile app or PC software.
- ONVIF-compatible with third-party IP cameras.
- Deployment Scenarios:
- Ideal for homes, small businesses, retail stores, and offices needing a mix of analog and IP surveillance.
- NDAA-compliant — safe for use in sensitive or government facilities.
The UNV XVR301-08Q3 is a hybrid 8-channel DVR supporting 4 additional IP inputs and 4K UltraHD recording. Featuring H.265 compression, HDMI/VGA output, remote access, and a SATA bay for up to 10TB storage, it’s a versatile and NDAA-compliant solution for mixed-format surveillance systems.
Specifications
| Feature | Detail |
|---|---|
| Recorder Type | Hybrid 8-Channel DVR with IP Support |
| Video Input | 8 BNC Channels (TVI/AHD/CVI/CVBS) + 4 IP Channels |
| Max Video Input Resolution | 8MP (4K) for Analog and IP Inputs |
| Video Output | HDMI and VGA (Up to 4K) |
| Audio Input/Output | 1 RCA In / 1 RCA Out |
| Compression Format | H.265 / H.264 |
| Recording Resolution | Up to 8MP (3840 × 2160) |
| Display Split | 1 / 4 / 8 / 9 |
| Playback | Up to 8 Channels Simultaneous |
| Recording Modes | Manual, Schedule, Motion, Alarm |
| SATA Interfaces | 1 × SATA (Up to 10TB) |
| Backup Options | USB Flash Drive, Network |
| Alarm I/O | 4 In / 1 Out (Model Dependent) |
| Network Interface | 1 × RJ45 (10/100Mbps Ethernet) |
| USB Ports | 2 × USB 2.0 |
| Mobile & Remote Access | Web Interface, Mobile App (iOS/Android), PC Client |
| Power Supply | DC 12V / 2A |
| Power Consumption | <10W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Dimensions | Approx. 260 × 236 × 48 mm |
| Weight | Approx. 1.2kg (without HDD) |
| Compliance | NDAA, CE, FCC, RoHS |
There are no reviews yet.
