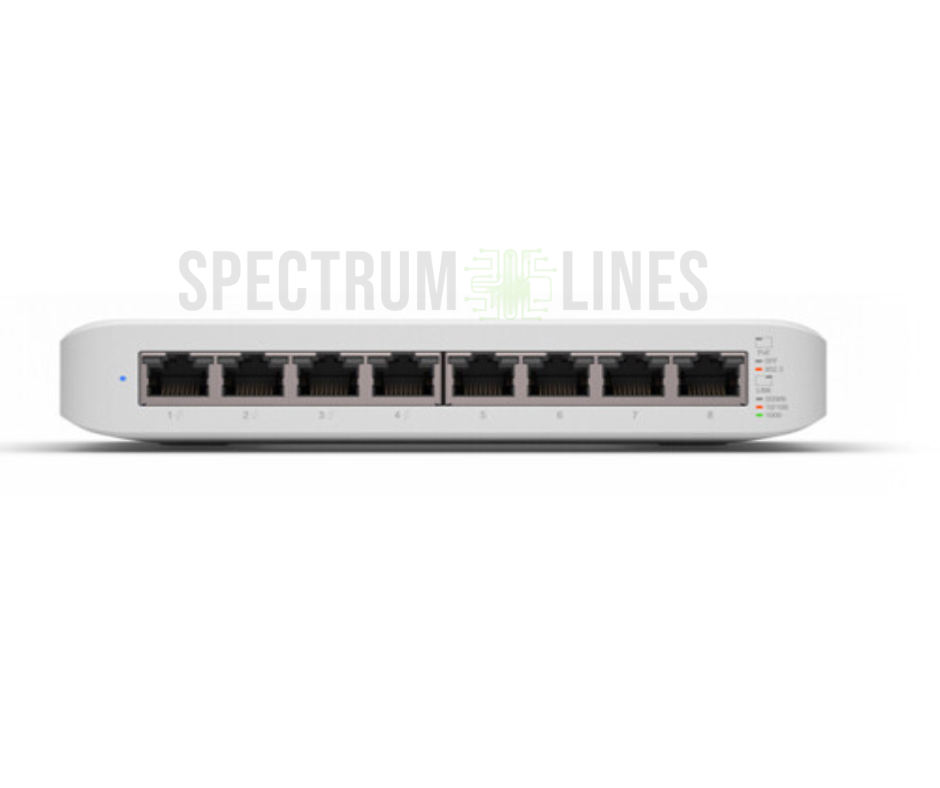

Ubiquiti Networks UniFi Lite 8-Port Gigabit PoE+ Compliant Managed Switch

$109.00

  • Ports: 8 × RJ45 Gigabit Ethernet
  • PoE Output: 4 × PoE+ ports (802.3af/at, up to 30W per port)
  • Total PoE Power Budget: 52W
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Power Input: External 60W power adapter
  • Mounting: Desktop (non-rackmount)
  • Dimensions: 148 × 99.5 × 30.7 mm
  • Weight: 432 g
  • Management Interface: UniFi Network Controller (Web UI, Mobile App)
  • Operating Temperature: -5°C to 40°C (23°F to 104°F)

The Ubiquiti UniFi Lite 8-Port Gigabit PoE+ Switch is a compact, silent, and high-performance managed switch designed for small networks. With 4 PoE+ ports, a 52W power budget, and UniFi Controller management, it’s perfect for powering UniFi devices and maintaining full control over your network from anywhere. Ideal for home offices, small businesses, and edge deployments.

Product Specifications

Feature Details
Model UniFi Lite 8-Port Gigabit PoE+ Switch
Total Ports 8 × Gigabit Ethernet RJ45 Ports
PoE+ Ports 4 × IEEE 802.3af/at (PoE+)
PoE Power Budget 52W Total Power Budget
Switching Capacity 16 Gbps
Forwarding Rate 11.9 Mpps
Form Factor Desktop (Non-Rackmount)
Cooling Fanless (Silent Operation)
Housing Metal Casing for Heat Dissipation
Power Input External Power Adapter (60W)
Energy Efficiency Supports Energy-Efficient Ethernet (EEE)
Management Managed via UniFi Controller (Web UI & Mobile App)
Dimensions 148 × 99.5 × 30.7 mm
Weight 432 grams
Operating Temperature -5°C to 40°C (23°F to 104°F)
Be the first to review “Ubiquiti Networks UniFi Lite 8-Port Gigabit PoE+ Compliant Managed Switch”

Your email address will not be published. Required fields are marked *

There are no reviews yet.

Be the first to review “Ubiquiti Networks UniFi Lite 8-Port Gigabit PoE+ Compliant Managed Switch”

Recently Viewed

  • Configuration for Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Compliant Managed Switch

    • Ports:
      • 48 × Gigabit RJ45 Ethernet Ports
      • 32 Ports Support PoE+ (802.3af/at)
      • 4 × 1G SFP Uplink Ports
    • PoE Budget:
      • Total PoE+ Budget: 195W
      • Up to 30W per supported port
    • Performance:
      • Switching Capacity: 104 Gbps
      • Forwarding Rate: 77.37 Mpps
    • Power Supply:
      • Integrated Internal Power Supply
      • Standard AC Input
    • Cooling:
      • Quiet active fans for consistent airflow and temperature control
    • Management Platform:
      • Fully managed via UniFi Network Controller (Web & Mobile Access)
    • Build & Design:
      • Metal rackmount enclosure
      • 1U height for efficient cabinet installation

    Quick View

    Wishlist

    Compare

    Add to cart

    Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Compliant Managed Switch

     $589.00

    Configuration for Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Compliant Managed Switch

    • Ports:
      • 48 × Gigabit RJ45 Ethernet Ports
      • 32 Ports Support PoE+ (802.3af/at)
      • 4 × 1G SFP Uplink Ports
    • PoE Budget:
      • Total PoE+ Budget: 195W
      • Up to 30W per supported port
    • Performance:
      • Switching Capacity: 104 Gbps
      • Forwarding Rate: 77.37 Mpps
    • Power Supply:
      • Integrated Internal Power Supply
      • Standard AC Input
    • Cooling:
      • Quiet active fans for consistent airflow and temperature control
    • Management Platform:
      • Fully managed via UniFi Network Controller (Web & Mobile Access)
    • Build & Design:
      • Metal rackmount enclosure
      • 1U height for efficient cabinet installation
    • Ports:
      • 16 × 10/100/1000 Mbps RJ45 Ethernet Ports
      • 8 Ports Support PoE+ (802.3af/at)
    • PoE Power:
      • Total Budget: 130W
      • Max 30W per PoE+ Port
    • Performance:
      • Switching Capacity: 32 Gbps
      • Forwarding Rate: 23.81 Mpps
    • Management System:
      • Managed via UniFi Network Controller (Desktop & Mobile)
    • Design & Build:
      • Compact metal body
      • Fanless for silent operation
      • Efficient heat dissipation
    • Power Supply:
      • External AC Adapter included

    Quick View

    Wishlist

    Compare

    Add to cart

    Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch

     $199.00
    • Ports:
      • 16 × 10/100/1000 Mbps RJ45 Ethernet Ports
      • 8 Ports Support PoE+ (802.3af/at)
    • PoE Power:
      • Total Budget: 130W
      • Max 30W per PoE+ Port
    • Performance:
      • Switching Capacity: 32 Gbps
      • Forwarding Rate: 23.81 Mpps
    • Management System:
      • Managed via UniFi Network Controller (Desktop & Mobile)
    • Design & Build:
      • Compact metal body
      • Fanless for silent operation
      • Efficient heat dissipation
    • Power Supply:
      • External AC Adapter included

  • Mounting Setup

    • Use wall or pole brackets included in kit.
    • Position cables downward to maintain IP55 rain protection.

    B. Power Input

    • Requires an 802.3bt PoE++ (Type 4) source (90 W injector or switch).
    • Must negotiate using IEEE 802.3 standard to unlock full PoE budget Broadband Buyer+14community.tp-link.com+14TP-Link+14.

    C. Network & PoE Configuration

    • Via Omada Controller or local GUI/CLI:
      • Enable/disable PoE on ports 1–4.
      • Set VLANs, QoS policies (8 priority queues).
      • Apply ACLs, IGMP snooping for multicast.
      • Configure static routes for internal traffic segmentation Multilink+15Primus Cable+15Amazon+15.

    D. Advanced Management

    • SNMP v1/2c/3 support; RMON and dual firmware images for redundancy Primus Cable.
    • IPv6 support (management, ACL, QoS, MLD snooping

    Quick View

    Wishlist

    Compare

    Add to cart

    TP-Link Omada 5-Port IP55 Outdoor-Rated Managed Gigabit Smart Switch with 4 PoE+ Out Ports & 1 PoE++ In Port (SG2005P-PD)

     $99.99

    Mounting Setup

    • Use wall or pole brackets included in kit.
    • Position cables downward to maintain IP55 rain protection.

    B. Power Input

    • Requires an 802.3bt PoE++ (Type 4) source (90 W injector or switch).
    • Must negotiate using IEEE 802.3 standard to unlock full PoE budget Broadband Buyer+14community.tp-link.com+14TP-Link+14.

    C. Network & PoE Configuration

    • Via Omada Controller or local GUI/CLI:
      • Enable/disable PoE on ports 1–4.
      • Set VLANs, QoS policies (8 priority queues).
      • Apply ACLs, IGMP snooping for multicast.
      • Configure static routes for internal traffic segmentation Multilink+15Primus Cable+15Amazon+15.

    D. Advanced Management

    • SNMP v1/2c/3 support; RMON and dual firmware images for redundancy Primus Cable.
    • IPv6 support (management, ACL, QoS, MLD snooping
    • Ports:
      • 5 × Gigabit Ethernet Ports (Auto-sensing 10/100/1000 Mbps)
    • Management Interface:
      • Fully managed using UniFi Controller (Cloud or Local Web UI + App)
    • Power Options:
      • USB-C Power Adapter (Included)
      • PoE Input (802.3af, on Port 1)
    • Performance:
      • Switching Capacity: 10 Gbps
      • Forwarding Rate: 7.44 Mpps
    • Cooling System:
      • Fanless (Silent operation)
    • Build & Design:
      • Compact, lightweight plastic body
      • Non-rackmount, desktop-friendly

    Quick View

    Wishlist

    Compare

    Add to cart

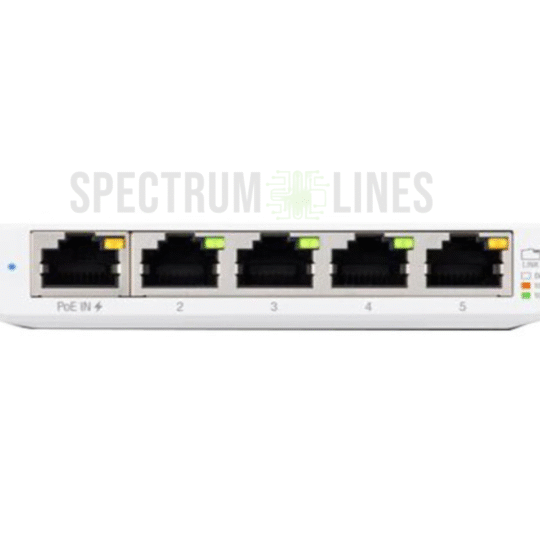

    Ubiquiti Networks UniFi USW Flex Mini 5-Port Gigabit Managed Switch
