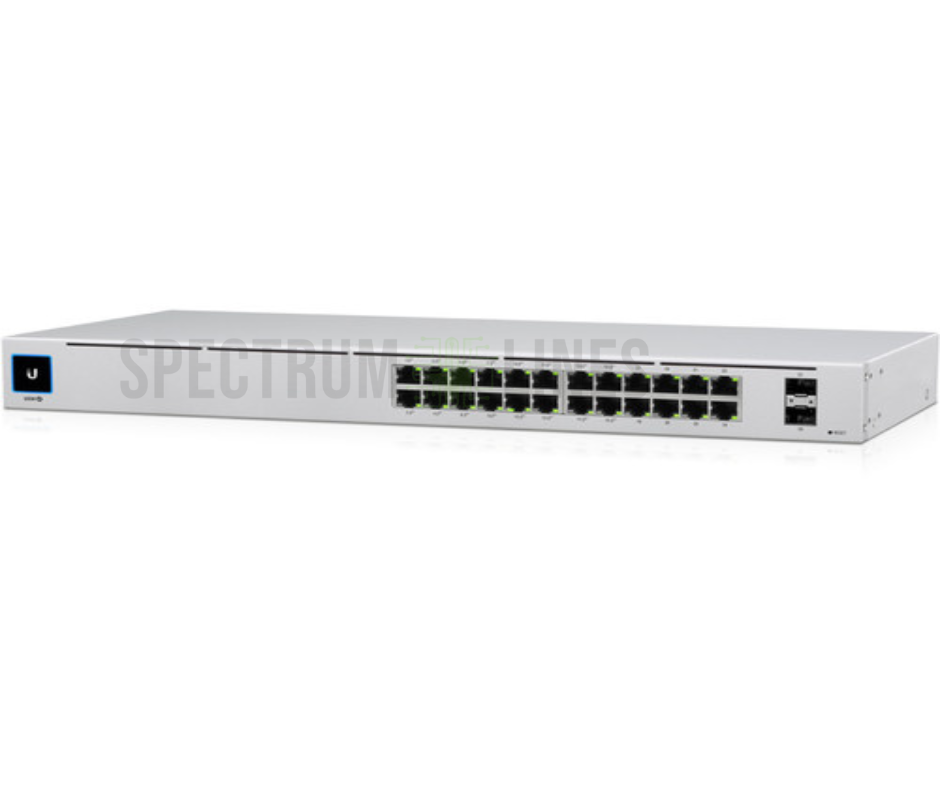

Ubiquiti Networks UniFi 24-Port Gigabit PoE+ Compliant Managed Switch with SFP

$379.00

  • Product Name: Ubiquiti Networks UniFi 24-Port Gigabit PoE+ Managed Switch with SFP
  • Model: USW-24-POE
  • Switch Type: Managed Layer 2
  • Total Ports: 24 Gigabit RJ45 Ports
  • PoE Support: 16 PoE+ Enabled Ports (IEEE 802.3af/at)
  • SFP Ports: 2 x 1G SFP Ports for fiber uplinks
  • Management Interface: UniFi Network Controller (web or app)
  • Enclosure: Rack-Mountable (1U)
  • Cooling: Fanless design (silent operation)
  • Power Supply: Internal

The Ubiquiti UniFi 24-Port Gigabit PoE+ Managed Switch delivers powerful Layer 2 networking with advanced management through the UniFi Controller. It features 24 Gigabit Ethernet ports, including 16 PoE+ capable for powering access points, cameras, and VoIP devices. With 2 SFP uplinks, a 95W power budget, and silent fanless operation, this rack-mountable switch is ideal for scalable, high-performance business networks.

Technical Specifications

Specification Details
Total Ethernet Ports 24 x Gigabit RJ45
PoE+ Enabled Ports 16 (802.3af/at compliant)
PoE Power Budget 95W total power budget
SFP Ports 2 x 1G SFP
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
MAC Address Table Size 8K entries
Packet Buffer Size 1 MB
VLAN Support 802.1Q VLAN tagging
IGMP Snooping Yes
Energy-Efficient Ethernet Yes (EEE 802.3az)
Mounting 1U Rack-Mountable (brackets included)
Cooling Fanless (silent operation)
Dimensions 442.4 x 200 x 43.7 mm
Weight Approx. 3.1 kg
Operating Temperature -5°C to 40°C
Management UniFi Network Controller (cloud or local)
Power Input 100–240VAC, 50/60Hz
Warranty 1-Year Limited Warranty
