TP-Link Pharos Outdoor Long Range Wireless 5GHz Dual-Polarized Directional MIMO Antenna (CPE510)

$54.99

  • Wireless Performance:
    • Supports 5GHz 802.11a/n
    • Delivers speeds up to 300Mbps with 2×2 MIMO technology
  • Antenna & Range:
    • 13dBi built-in directional dual-polarized antenna
    • Optimized for long-distance point-to-point or point-to-multipoint setups
  • Power & Installation:
    • Powered via Passive PoE (24V adapter included)
    • Easy mounting with included pole and wall brackets
  • Reliability & Durability:
    • IPX5-rated enclosure for harsh outdoor environments
    • Advanced ESD and lightning protection built-in
  • Software Management:
    • Managed via TP-Link’s Pharos Control for network monitoring, upgrades, and settings
  • Use Cases:
    • Ideal for CCTV backhaul, remote internet access, and wireless bridging across large properties

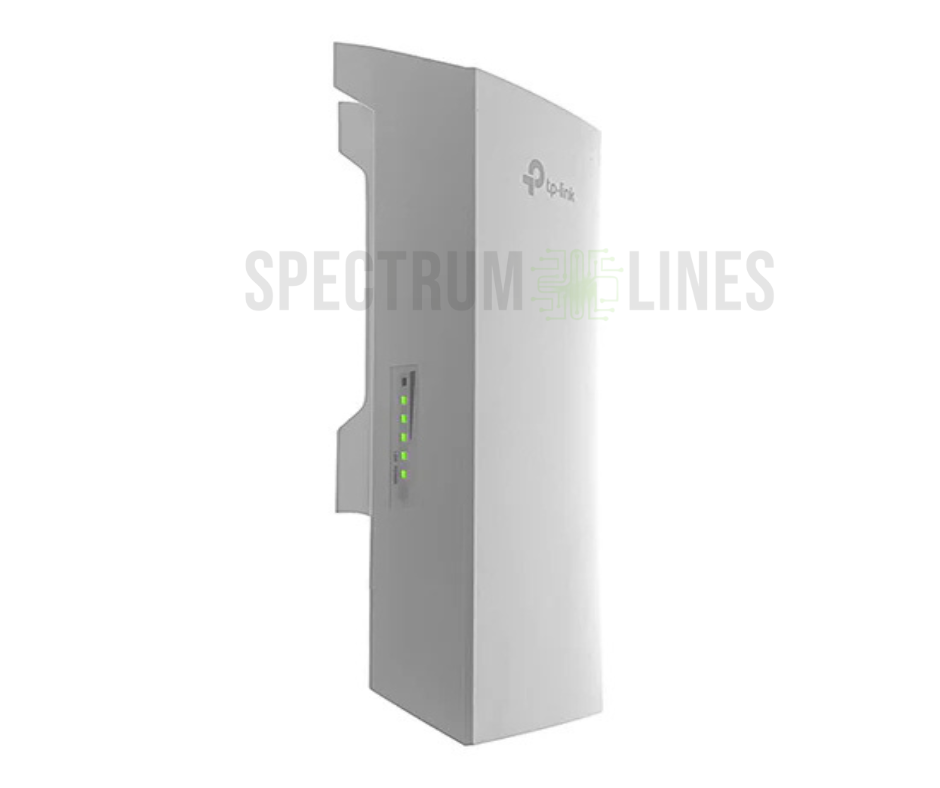

The TP-Link Pharos CPE510 is a high-power, outdoor 5GHz wireless solution designed for long-range point-to-point and point-to-multipoint connections. With a built-in 13dBi dual-polarized directional antenna, 2×2 MIMO, and over 15km transmission capability, it’s perfect for bridging networks between buildings or delivering broadband to remote areas. Featuring weatherproof construction and centralized Pharos Control management, it offers reliable, scalable outdoor wireless connectivity.

Product Details

Feature Details
Product Name TP-Link Pharos Outdoor Long Range Wireless 5GHz Dual-Polarized MIMO Antenna
Model Number CPE510
Wireless Standard IEEE 802.11a/n
Frequency Band 5GHz (5150MHz–5850MHz)
Antenna Type Built-in 13dBi Dual-Polarized Directional Antenna
MIMO Technology 2×2 MIMO
Wireless Speed Up to 300Mbps
Transmission Range Over 15km+ (line-of-sight, dependent on environment)
Power Supply Passive PoE Adapter (24V) Included
PoE Support Yes (Supports PoE up to 60m cable length)
Operating Modes AP / Client / Repeater / AP Router / AP Client Router
Max Power Consumption <9W
Weather Protection Outdoor-Ready Design with Weatherproof Housing
Surge Protection 15KV ESD and 6000V Lightning Protection
Management Platform Pharos Control Centralized Management Software
Mounting Pole or Wall Mount (Kits Included)
Operating Temperature -30°C to 70°C (-22°F to 158°F)
Dimensions 224 × 79 × 60 mm
