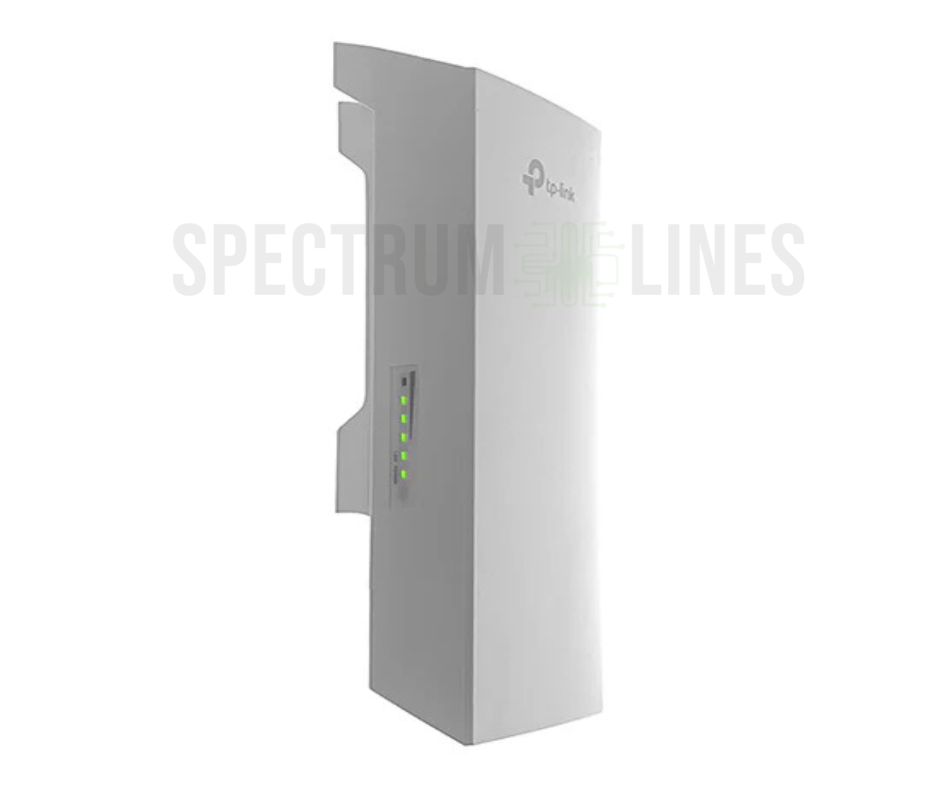

TP-Link Pharos Outdoor Long Range Wireless 2.4GHz Dual-Polarized Directional MIMO Antenna (CPE210)

$44.99

  • Installation:
    • Mount the CPE210 on a pole or wall using the included hardware.
    • Connect power via the provided 24V passive PoE adapter for long-distance power delivery.
  • Modes Supported:
    • Supports AP, Client, AP Router, Repeater, WISP Client Router modes.
    • Ideal for point-to-point and point-to-multipoint wireless bridges.
  • Antenna & Signal:
    • Built-in high-gain directional antenna designed for long-range transmission.
    • Dual-polarized MIMO improves stability and performance across distances.
  • Configuration Interface:
    • Access via web browser to set SSID, channel, transmit power, security, and more.
    • Use Pharos Control software for centralized management of multiple units.
  • Security Features:
    • Supports WPA/WPA2 encryption, MAC filtering, VLAN, and watchdog rebooting.
    • Network isolation options to protect connected devices.
  • Typical Use Cases:
    • Long-range wireless internet bridging between buildings or towers.
    • Outdoor CCTV network backhaul.
    • Wi-Fi extension to farms, campuses, warehouses, or construction sites.

TP-Link CPE210 is a high-power 2.4GHz outdoor wireless solution with dual-polarized directional MIMO antenna, delivering up to 300Mbps over long distances. With adjustable transmission power, weatherproof design, and multiple operating modes, it’s ideal for point-to-point bridging, outdoor Wi-Fi coverage, and secure remote connectivity.

Specifications

Feature Detail
Wireless Standard IEEE 802.11n/g/b (2.4GHz Single Band)
Operating Frequency 2.4 – 2.483GHz
Maximum Wireless Speed Up to 300 Mbps
Antenna Type 9 dBi 2×2 Dual-Polarized Directional MIMO Antenna
Transmission Power Up to 27 dBm / 500 mW (Adjustable)
Ethernet Port 1 × 10/100 Mbps LAN (Passive PoE In)
Power Supply 24V Passive PoE Adapter (Included)
Mounting Options Pole and Wall Mounting Kits Included
Enclosure Protection Weatherproof Outdoor Casing
Operating Temperature -30°C to +70°C
Humidity Tolerance 10% – 90% Non-Condensing
Management Software Pharos Control Centralized Management
LED Indicators Power, LAN, Signal Strength
Certifications CE, FCC, RoHS
