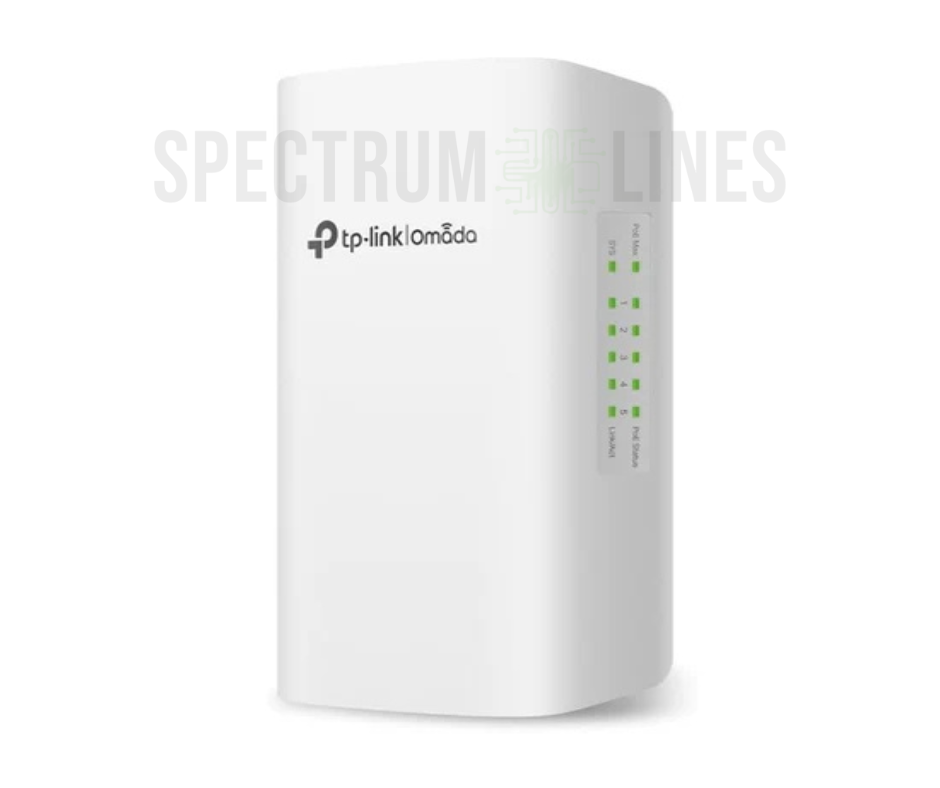

TP-Link Omada 5-Port IP55 Outdoor-Rated Managed Gigabit Smart Switch with 4 PoE+ Out Ports & 1 PoE++ In Port (SG2005P-PD)

$99.99

Mounting Setup

  • Use wall or pole brackets included in kit.
  • Position cables downward to maintain IP55 rain protection.

B. Power Input

  • Requires an 802.3bt PoE++ (Type 4) source (90 W injector or switch).
  • Must negotiate using IEEE 802.3 standard to unlock full PoE budget Broadband Buyer+14community.tp-link.com+14TP-Link+14.

C. Network & PoE Configuration

  • Via Omada Controller or local GUI/CLI:
    • Enable/disable PoE on ports 1–4.
    • Set VLANs, QoS policies (8 priority queues).
    • Apply ACLs, IGMP snooping for multicast.
    • Configure static routes for internal traffic segmentation Multilink+15Primus Cable+15Amazon+15.

D. Advanced Management

  • SNMP v1/2c/3 support; RMON and dual firmware images for redundancy Primus Cable.
  • IPv6 support (management, ACL, QoS, MLD snooping

TP‑Link Omada SG2005P‑PD is a compact, IP55‑rated outdoor PoE switch featuring 5 Gigabit ports—1× PoE++ in & 4× PoE+ out—with up to 64 W total PoE budget. Its PoE‑passthrough extends network reach to 200 m, perfect for remote APs or cameras, while harsh environments are handled by its –40 °C to 60 °C rating, UV resistance, and 4 kV surge protection. Fully managed via Omada SDN, it offers VLAN, QoS, ACL, static routing, and cloud-backed remote control—ideal for reliable outdoor surveillance and network deployments.

Specifications

Feature Details
Ports 5× Gigabit RJ‑45 (1× PoE++ In, 4× PoE+ Out)
PoE Support In: 802.3af/at/bt; Out: 802.3af/at
PoE Budget 64 W (bt Type 4), 44 W (bt Type 3), 19 W (at), 6 W (af)
Extended PoE Reach Up to 200 m with passthrough
Weather Protection IP55 rated, dustproof, waterproof, UV‑resistant
Temperature Range –40 °C to +60 °C
Lightning Protection 4 kV surge handling
Mounting Options Wall or pole included
Switching Features VLAN, QoS, ACL, Static Routing, IGMP Snooping, STP/RSTP/MSTP, link aggregation
Management Web GUI, CLI, SNMP, Omada SDN cloud & local controllers
Performance Specs 10 Gbps switching capacity; 7.44 Mpps
Physical Dimensions 100×38.5×170 mm (3.9″×1.5″×6.7″)
Fanless Design Yes
Power Consumption ~71.5 W max @ PoE++ input
Be the first to review “TP-Link Omada 5-Port IP55 Outdoor-Rated Managed Gigabit Smart Switch with 4 PoE+ Out Ports & 1 PoE++ In Port (SG2005P-PD)”

Your email address will not be published. Required fields are marked *

There are no reviews yet.

Be the first to review “TP-Link Omada 5-Port IP55 Outdoor-Rated Managed Gigabit Smart Switch with 4 PoE+ Out Ports & 1 PoE++ In Port (SG2005P-PD)”

Recently Viewed

    • Ports:
      • 16 × 10/100/1000 Mbps RJ45 Ethernet Ports
      • 8 Ports Support PoE+ (802.3af/at)
    • PoE Power:
      • Total Budget: 130W
      • Max 30W per PoE+ Port
    • Performance:
      • Switching Capacity: 32 Gbps
      • Forwarding Rate: 23.81 Mpps
    • Management System:
      • Managed via UniFi Network Controller (Desktop & Mobile)
    • Design & Build:
      • Compact metal body
      • Fanless for silent operation
      • Efficient heat dissipation
    • Power Supply:
      • External AC Adapter included

    Quick View

    Wishlist

    Compare

    Add to cart

    Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch

     $199.00
    • Ports:
      • 16 × 10/100/1000 Mbps RJ45 Ethernet Ports
      • 8 Ports Support PoE+ (802.3af/at)
    • PoE Power:
      • Total Budget: 130W
      • Max 30W per PoE+ Port
    • Performance:
      • Switching Capacity: 32 Gbps
      • Forwarding Rate: 23.81 Mpps
    • Management System:
      • Managed via UniFi Network Controller (Desktop & Mobile)
    • Design & Build:
      • Compact metal body
      • Fanless for silent operation
      • Efficient heat dissipation
    • Power Supply:
      • External AC Adapter included

  • Physical Setup

    • Install using the supplied mounting kit (desktop or 1U rack).
    • Connect to AC power; when all PoE ports are in use, total consumption can reach ~174 W.

    B. PoE Configuration

    • Each of the eight ports automatically negotiates PoE requirements (802.3af/at).
    • Total power budget is 150 W, with up to 30 W available per port.

    C. Network Setup

    • Manage via Web GUI, CLI, or Omada SDN (local/cloud/mobile).
    • Configure up to 4096 VLANs, static routes (IPv4/IPv6), and DHCP relay.
    • Enable IGMP snooping to efficiently handle multicast traffic.

    D. QoS & Traffic Control

    • Set up L2–L4 QoS with CoS/DSCP support and 8 priority queues.
    • Bandwidth limiting and storm control ensure network stability.
    • Ideal for prioritizing latency-sensitive traffic like voice or video.

    E. Security & Monitoring

    • Activate IP‑MAC‑Port binding, 802.1X, ACLs, DHCP snooping, and DoS protection.
    • Use SNMP, RMON, and port mirroring for in-depth monitoring.
    • Supports Zero‑Touch Provisioning (ZTP) and dual firmware banks for reliable updates.

    Quick View

    Wishlist

    Compare

    Add to cart

    TP-Link JetStream 8-Port PoE+ with 2 Uplink Ports (TL-SG2210MP)

     $174.99

    Physical Setup

    • Install using the supplied mounting kit (desktop or 1U rack).
    • Connect to AC power; when all PoE ports are in use, total consumption can reach ~174 W.

    B. PoE Configuration

    • Each of the eight ports automatically negotiates PoE requirements (802.3af/at).
    • Total power budget is 150 W, with up to 30 W available per port.

    C. Network Setup

    • Manage via Web GUI, CLI, or Omada SDN (local/cloud/mobile).
    • Configure up to 4096 VLANs, static routes (IPv4/IPv6), and DHCP relay.
    • Enable IGMP snooping to efficiently handle multicast traffic.

    D. QoS & Traffic Control

    • Set up L2–L4 QoS with CoS/DSCP support and 8 priority queues.
    • Bandwidth limiting and storm control ensure network stability.
    • Ideal for prioritizing latency-sensitive traffic like voice or video.

    E. Security & Monitoring

    • Activate IP‑MAC‑Port binding, 802.1X, ACLs, DHCP snooping, and DoS protection.
    • Use SNMP, RMON, and port mirroring for in-depth monitoring.
    • Supports Zero‑Touch Provisioning (ZTP) and dual firmware banks for reliable updates.
    • Ports:
      • 5 × Gigabit Ethernet Ports (1 × PoE In, 4 × PoE Out)
    • PoE Capabilities:
      • Port 1: Accepts 802.3at PoE+ input
      • Ports 2–5: Output 802.3af PoE (max 46W budget)
    • Management:
      • Fully managed through UniFi Controller (Cloud or Local UI & App)
    • Performance:
      • Switching Capacity: 10 Gbps
      • Forwarding Rate: 7.44 Mpps
    • Power:
      • Powered via PoE only (no AC adapter)
    • Design & Durability:
      • Weatherproof housing for indoor/outdoor flexibility
      • Mountable on desktop, wall, or pole

    Quick View

    Wishlist

    Compare

    Add to cart

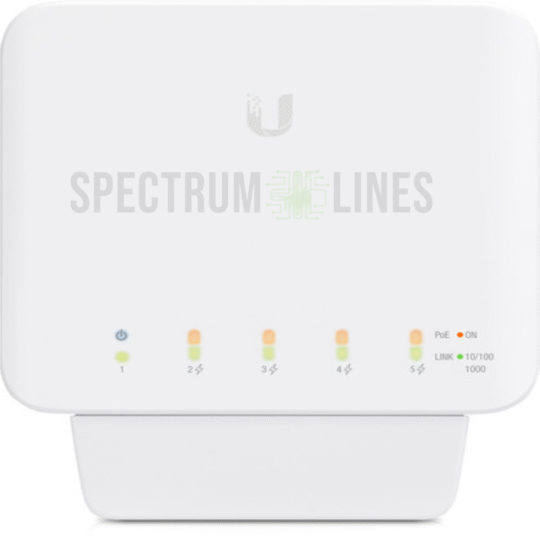

    Ubiquiti Networks UniFi Switch Flex 5-Port Managed Gigabit PoE Network Switch
