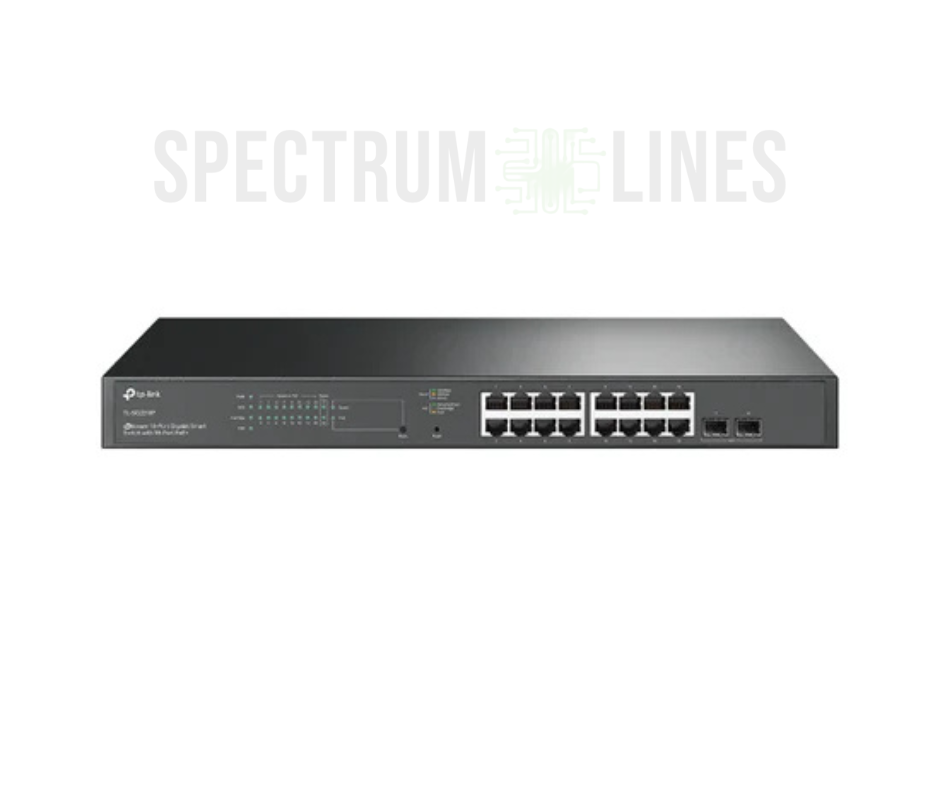

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+ and 2 SFP Ports (TL-SG2218P)

$259.99

Physical & Power Setup

  • Rack-mountable (1U) with included mounting kit.
  • Connect AC power; ensure sufficient ventilation as it may run warm.
  • Use PoE+ ports to power cameras, APs; each can supply up to 30 W, total 150 W.

B. Basic Network Configuration

  • Access via Web GUI or CLI (default IP 192.168.0.1).
  • Use Omada SDN Controller or Omada app for zero-touch provisioning and centralized cloud management.

C. VLAN & Routing

  • Create up to 4K VLANs; supports voice VLAN.
  • Configure up to 32 IPv4/IPv6 static routes for inter-VLAN routing.
  • Use IGMP snooping and MVR for multicast efficiency.

D. QoS & Traffic Control

  • Define CoS/DSCP-based priority with 8 queues.
  • Control bandwidth per port/flow; implement storm control for broadcast/multicast.
  • Prioritize voice/video traffic with SP or WRR modes.

E. Security & Monitoring

  • Enable IP-MAC-Port binding, 802.1X authentication, DHCP snooping, and DoS defense.
  • Use ACLs (up to 230 entries) for access control.
  • Utilize SNMP, RMON and port mirroring for network monitoring.

TP‑Link JetStream TL‑SG2218P is an 18‑port Gigabit smart switch featuring 16 PoE+ ports (150 W total) and 2 SFP slots, delivering reliable power and flexibility for IP‑based devices. It boasts 36 Gbps switching capacity, advanced L2+/L3 features (VLAN, ACL, static routing), 802.1p QoS, and robust security (802.1X, DHCP Snooping). Fully manageable via Omada SDN (cloud, ZTP, mobile app), it’s an ideal rackmount solution for offices, surveillance, VoIP, and campus networks.

Specifications

Feature Details
Ports 16× Gigabit PoE+ (802.3af/at), 2× Gigabit SFP TP-Link+13TP-Link+13Newegg.com+13
PoE Budget Total 150 W, up to 30 W per port
Switching Capacity 36 Gbps; 26.78 Mpps
MAC Table / Buffer 8 K MAC entries; 4.1 Mbit buffer; Jumbo frames up to 9 KB
QoS & Traffic Control 802.1p CoS/DSCP, 8 queues, SP/WRR, bandwidth & storm control
Layer 2+/Layer 3 VLAN, ACL (230 entries), static routing (32 routes IPv4/IPv6), DHCP server/relay, IGMP snooping (511 groups)
Security IP-MAC-Port Binding, 802.1X, Radius, DHCP Snooping, DoS defense, storm control
Management Web GUI, CLI, SNMP v1/2c, RMON, Omada SDN (cloud, ZTP, Omada app)
IPv6 Features Dual-stack, neighbor discovery, MLD snooping
Physical 1U rackmount, metal chassis, fanless design (UK variant)
Power & Heat Input 100–240 VAC; Max consumption ~181 W (with full PoE load); heat dissipation ~619 BTU/hr
Dimensions ~440×180×44 mm (17.3″×7.1″×1.7″)
