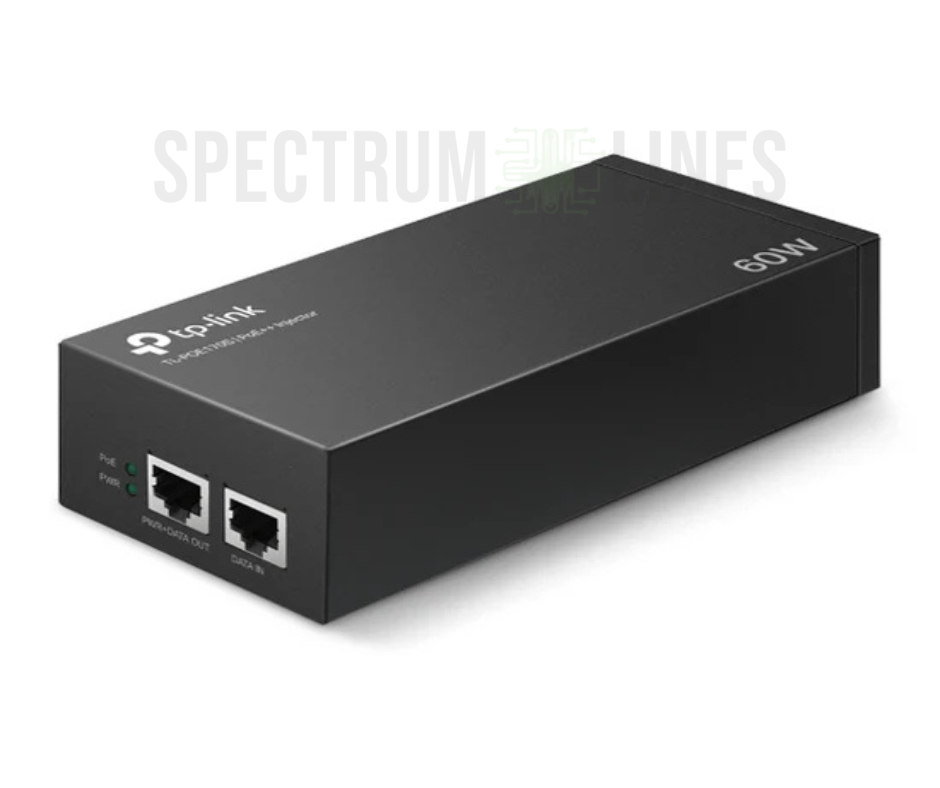

TP-Link Gigabit PoE++ Injector, Supplies up to 60W of Power (TL-POE170S)

$59.99

  • Plug and Play: No configuration required.
  • Compatibility: Works with all IEEE 802.3af/at/bt compliant powered devices (PDs).
  • Setup:
    • Connect the LAN cable from your switch/router to the Data In port.
    • Connect another LAN cable from the PoE Out port to your powered device (e.g., IP camera, access point).
    • Plug the injector into a power outlet.

The TP-Link TL-POE170S is a high-power Gigabit PoE++ injector capable of delivering up to 60W of power over Ethernet. It supports IEEE 802.3af/at/bt standards, making it perfect for powering high-demand devices like PTZ cameras, wireless access points, and IP phones—all through a single Ethernet cable. With its plug-and-play design, the TL-POE170S provides a simple, cost-effective solution for extending network power and data without additional wiring.

Specifications

Feature Details
Model TL-POE170S
PoE Standard IEEE 802.3af/at/bt compliant
PoE Output Port 1 x 10/100/1000 Mbps RJ45 port
Data Input Port 1 x 10/100/1000 Mbps RJ45 port
PoE Output Power Up to 60W
Power Pin Assignment 4/5(+), 7/8(-); 3/6(+), 1/2(-)
Input Power 100–240V AC, 50/60Hz
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity 10% ~ 90% non-condensing
Dimensions 5.5 × 2.6 × 1.5 in (140.7 × 66.5 × 38.8 mm)
Mounting Desktop or wall-mountable
Certifications CE, FCC, RoHS
Warranty 2 Years (may vary by region)
