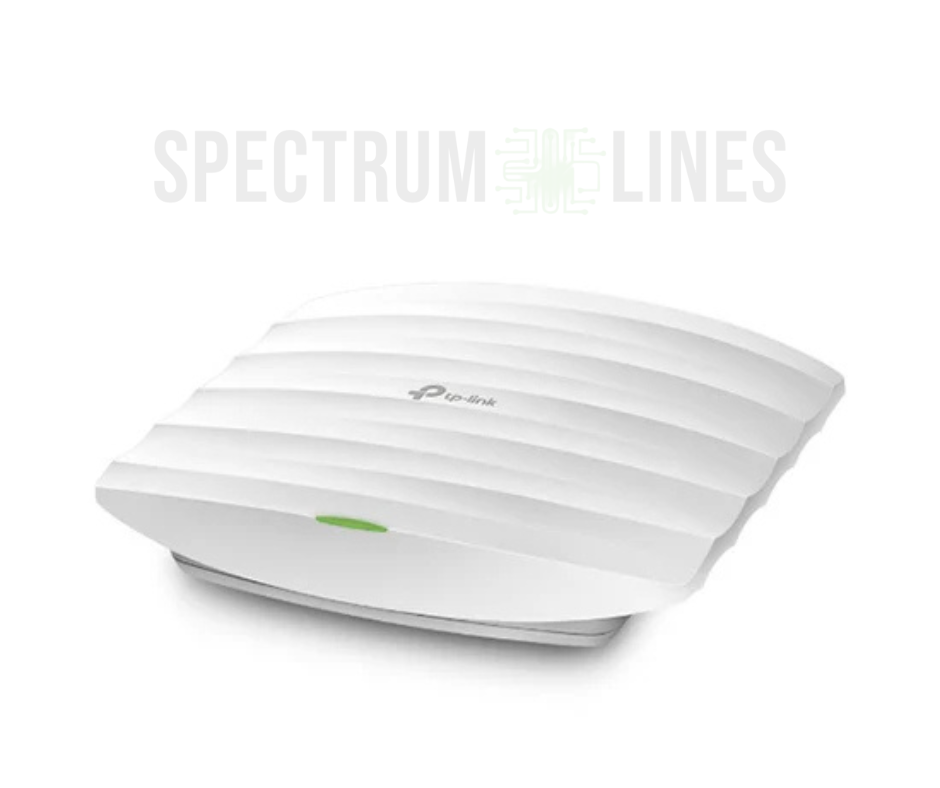

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP225)

$59.99

  • Physical Installation: Mount on ceiling or wall using included kit. Designed for discreet indoor deployment.
  • Power Options: Use with 802.3af/at PoE switch or the included 24V passive PoE adapter.
  • Setup Methods:
    • Standalone via web GUI.
    • Centralized control using Omada SDN Controller (software, hardware, or cloud-based).
  • Wireless Settings:
    • Configure SSIDs per band.
    • Enable MU-MIMO, Band Steering, and Airtime Fairness.
    • Set channel width and transmit power manually or auto.
  • Security Settings:
    • Enable WPA/WPA2 encryption.
    • Create guest networks using captive portal with SMS, voucher, or password authentication.
    • Assign VLANs per SSID for network segmentation.
  • Advanced Features:
    • Seamless roaming between access points.
    • Scheduled reboots, client limit per SSID, and SSID hiding.

TP-Link EAP225 is a ceiling-mount wireless access point offering dual-band AC1350 speeds with MU-MIMO and beamforming technology. Designed for high-density environments, it supports PoE, seamless roaming, captive portal guest access, and centralized Omada SDN management—perfect for offices, schools, hotels, and business networks.

Specifications Table

Feature Detail
Wireless Standards IEEE 802.11ac/n/g/b/a (Dual Band MU-MIMO)
Maximum Speed 450 Mbps @ 2.4GHz + 867 Mbps @ 5GHz (Total: 1350 Mbps)
Ethernet Port 1× Gigabit RJ-45 (Supports PoE 802.3af/at and 24V Passive PoE)
Antennas 3 Internal (2.4GHz), 2 Internal (5GHz), Omni-directional
Mounting Options Ceiling or Wall Mount (Kit Included)
Power Consumption Approx. 10.5–12.6 Watts
Device Capacity Supports 220+ Concurrent Clients
SSID Support Up to 16 SSIDs (8 per Band)
Wireless Features MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Load Balancing
Security Options WPA/WPA2, VLAN, Captive Portal, Access Control
Management Methods Omada SDN Controller, Web GUI, CLI, SNMP, Telnet, Mobile App
Operating Temperature 0°C to 40°C
Humidity Tolerance 10% to 90% (Non-Condensing)
Dimensions 205 × 181 × 37 mm
Certifications CE, FCC, RoHS
