• Plug and Play: No configuration required.
• Compatibility: Works with all IEEE 802.3af/at/bt compliant powered devices (PDs).
• Setup:
  • Connect the LAN cable from your switch/router to the Data In port.
  • Connect another LAN cable from the PoE Out port to your powered device (e.g., IP camera, access point).
  • Plug the injector into a power outlet.

Physical Setup

• Install using the supplied mounting kit (desktop or 1U rack).
• Connect to AC power; when all PoE ports are in use, total consumption can reach ~174 W.

B. PoE Configuration

• Each of the eight ports automatically negotiates PoE requirements (802.3af/at).
• Total power budget is 150 W, with up to 30 W available per port.

C. Network Setup

• Manage via Web GUI, CLI, or Omada SDN (local/cloud/mobile).
• Configure up to 4096 VLANs, static routes (IPv4/IPv6), and DHCP relay.
• Enable IGMP snooping to efficiently handle multicast traffic.

D. QoS & Traffic Control

• Set up L2–L4 QoS with CoS/DSCP support and 8 priority queues.
• Bandwidth limiting and storm control ensure network stability.
• Ideal for prioritizing latency-sensitive traffic like voice or video.

E. Security & Monitoring

• Activate IP‑MAC‑Port binding, 802.1X, ACLs, DHCP snooping, and DoS protection.
• Use SNMP, RMON, and port mirroring for in-depth monitoring.
• Supports Zero‑Touch Provisioning (ZTP) and dual firmware banks for reliable updates.

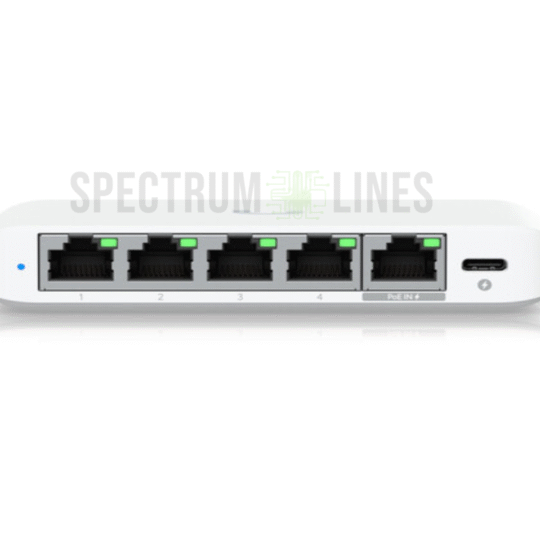

• Ports:
  • 1 × 2.5 Gigabit Ethernet (RJ45)
  • 4 × 1 Gigabit Ethernet (RJ45)
• Management Interface:
  • UniFi Network Controller (Web-based UI or Mobile App)
• Power Options:
  • USB-C Power Adapter (Included)
  • 802.3af PoE In (on Port 1)
• Performance:
  • Switching Capacity: 10 Gbps
  • Forwarding Rate: 7.44 Mpps
• Cooling:
  • Fanless (Silent Operation)
• Dimensions:
  • 107 × 70 × 21 mm
• Weight:
  • 150 grams
• Operating Temperature:
  • 0°C to 40°C (32°F to 104°F)
• Mounting:
  • Desktop or Wall-Mountable

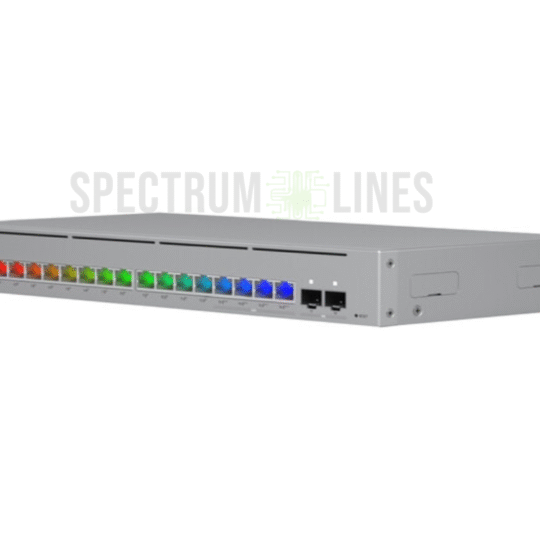

• Ports:
  • 12 × 2.5 Gigabit Ethernet (RJ45)
  • 4 × 1 Gigabit Ethernet (RJ45)
  • All ports support PoE (802.3af/at)
• PoE Performance:
  • 170W total PoE+ power budget
  • Up to 30W per port
• Power Source:
  • Built-in internal power supply (AC input)
• Cooling:
  • Completely fanless for quiet operation
• Management:
  • Managed via UniFi Controller (Web-based or Mobile App)
  • Centralized monitoring, VLANs, traffic control, and more
• Build & Design:
  • Solid metal housing
  • 1U rackmountable with optional desktop placement

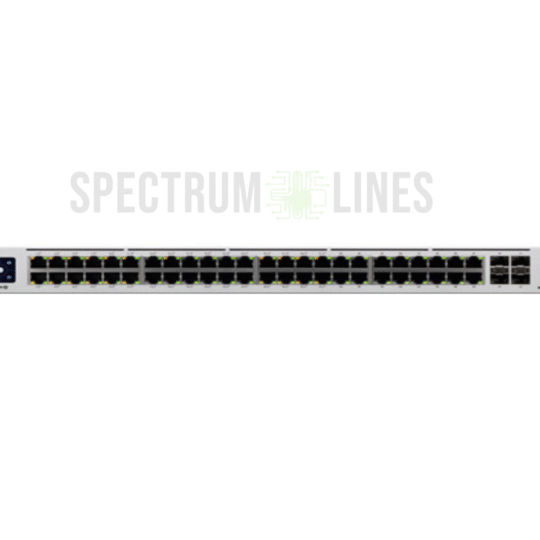

Configuration for Ubiquiti Networks UniFi 48-Port Gigabit PoE+ Compliant Managed Switch

• Ports:
  • 48 × Gigabit RJ45 Ethernet Ports
  • 32 Ports Support PoE+ (802.3af/at)
  • 4 × 1G SFP Uplink Ports
• PoE Budget:
  • Total PoE+ Budget: 195W
  • Up to 30W per supported port
• Performance:
  • Switching Capacity: 104 Gbps
  • Forwarding Rate: 77.37 Mpps
• Power Supply:
  • Integrated Internal Power Supply
  • Standard AC Input
• Cooling:
  • Quiet active fans for consistent airflow and temperature control
• Management Platform:
  • Fully managed via UniFi Network Controller (Web & Mobile Access)
• Build & Design:
  • Metal rackmount enclosure
  • 1U height for efficient cabinet installation

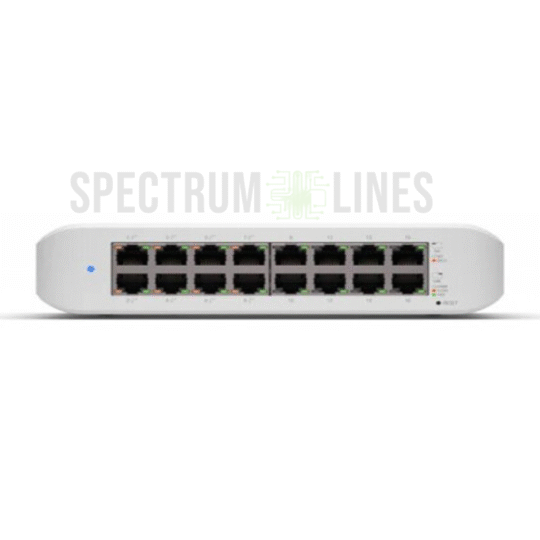

• Ports:
  • 16 × 10/100/1000 Mbps RJ45 Ethernet Ports
  • 8 Ports Support PoE+ (802.3af/at)
• PoE Power:
  • Total Budget: 130W
  • Max 30W per PoE+ Port
• Performance:
  • Switching Capacity: 32 Gbps
  • Forwarding Rate: 23.81 Mpps
• Management System:
  • Managed via UniFi Network Controller (Desktop & Mobile)
• Design & Build:
  • Compact metal body
  • Fanless for silent operation
  • Efficient heat dissipation
• Power Supply:
  • External AC Adapter included
